LeapFive BF2 Series Products
The industry’s first Wi-Fi/BLE combo feature chip based on RISC-V

BF2 is a highly integrated Wi Fi/BLE chip positioned for wireless connectivity applications in the ultra-low cost and low-power Internet of Things. Its core comes from the design of the world’s first Wi Fi/BLE combination functional chip developed based on RISC-V.

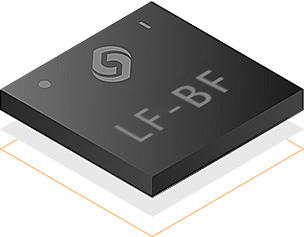

BF2 chip

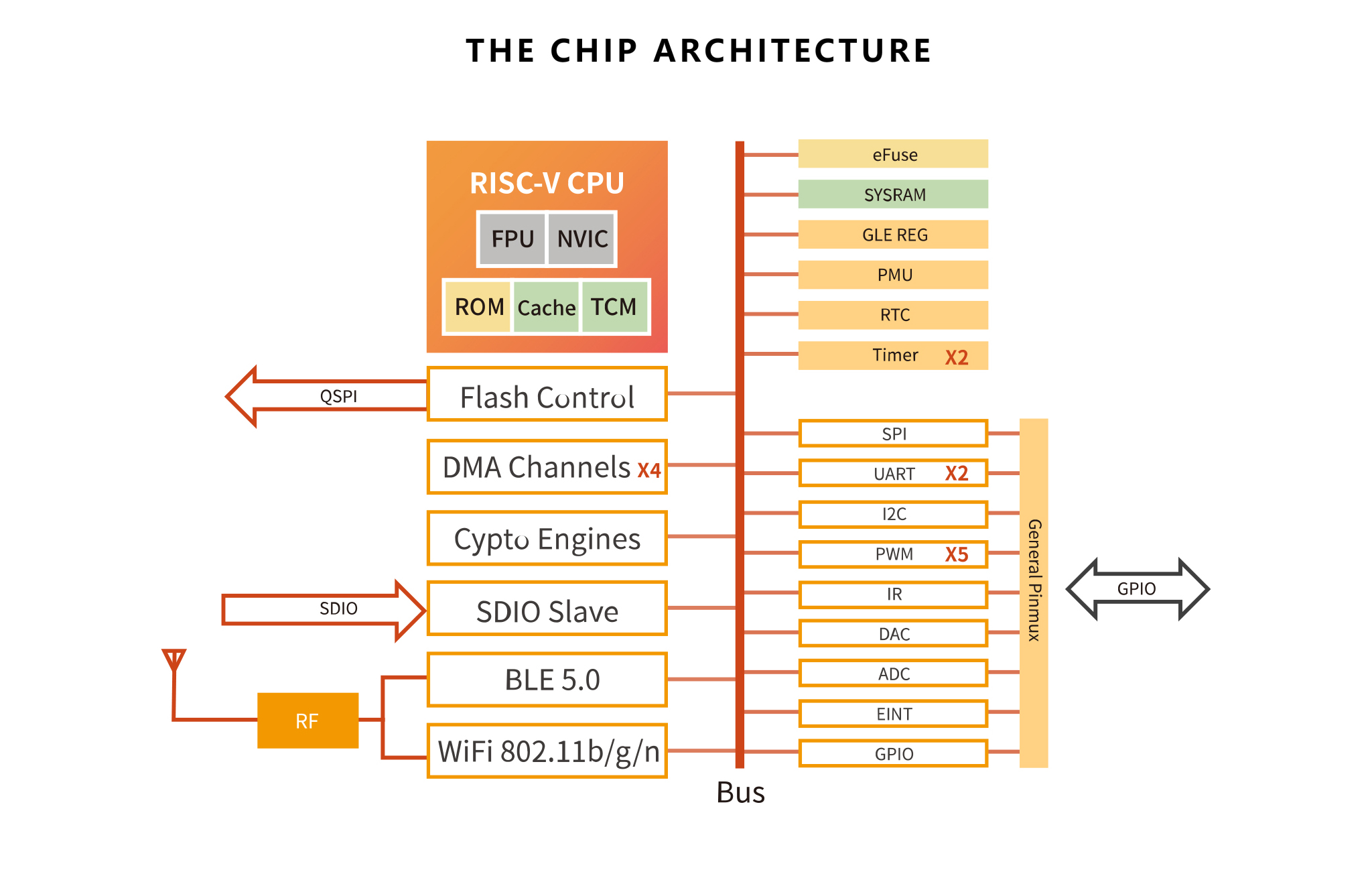

Based on the RISC-V architecture

Ultra-low power consumption

Extremely small footprint

Excellent RF performance

Flexible and programmable IO multiplexing

Security features ensured

  • IEEE 802.11 b/g/n (2.4GHz, 1×1)
  • BLE 5.0
  • Supports a series of Wi-Fi security features:
  • WEP/WPA/WPA2/WPS
  • Multiple modes: STA, SoftAP, and sniffer
  • Integrated balun, PA/LNA for signal enhancement
  • 32-bit RISC-V CPU running at 192MHz with floating-point capability
  • 276KB SRAM/128KB ROM
  • 2MB XIP FLASH
  • 1 RTC counter
  • 2 32-bit general-purpose timers
  • 4 DMA channels
  • 1 QSPI FLASH expansion interface
  • Secure Boot
  • Supports AES 128/192/256 encryption/decryption
  • Supports SHA-1/224/256 encryption/decryption
  • True Random Number Generation
  • 1 SDIO 2.0 slave interface
  • 1 SPI master/slave interface
  • 2 UART communication interfaces
  • 1 I2C master/slave interface
  • 5 PWM channels
  • 2 analog signal comparators
  • 1 10-bit DAC, 1 12-bit ADC
  • 1 passive infrared sensor
  • 1 infrared control hardware accelerator
  • 16 or 23 GPIOs (multiple packages)
  • Supports external 24/32/38.4/40MHz crystal
  • Built-in RC 32KHz crystal
  • Built-in RC 32MHz crystal

  • Smart Microwave
  • Smart Electric Kettle
  • Smart Refrigerator
  • Smart Toothbrush
  • Smart washing machine
  • Robotic Vacuum …

  • Smart thermostat
  • Energy Manager
  • Smart Lighting
  • Smart meter
  • Smart radiator controller…

  • Smart Detectors
  • Smart Access Control
  • Smart Alarm System
  • Smart Doorbell
  • Smart Blinds
  • Smart Door and Window Motion Controller
  • Smart Smoke Detector
  • Smart Air Quality Regulator …
